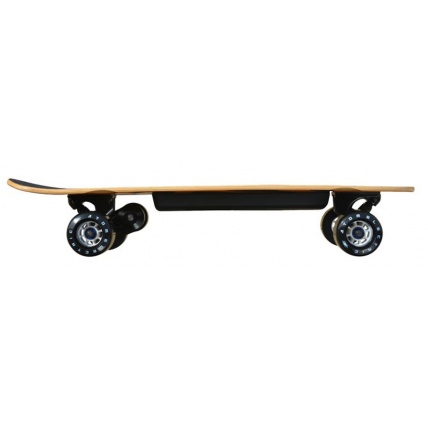

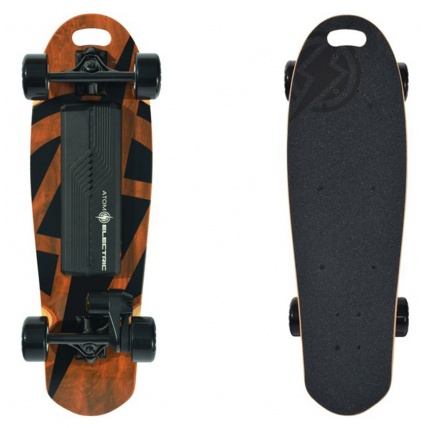

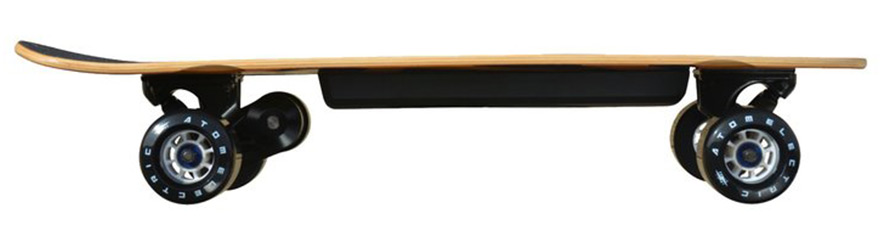

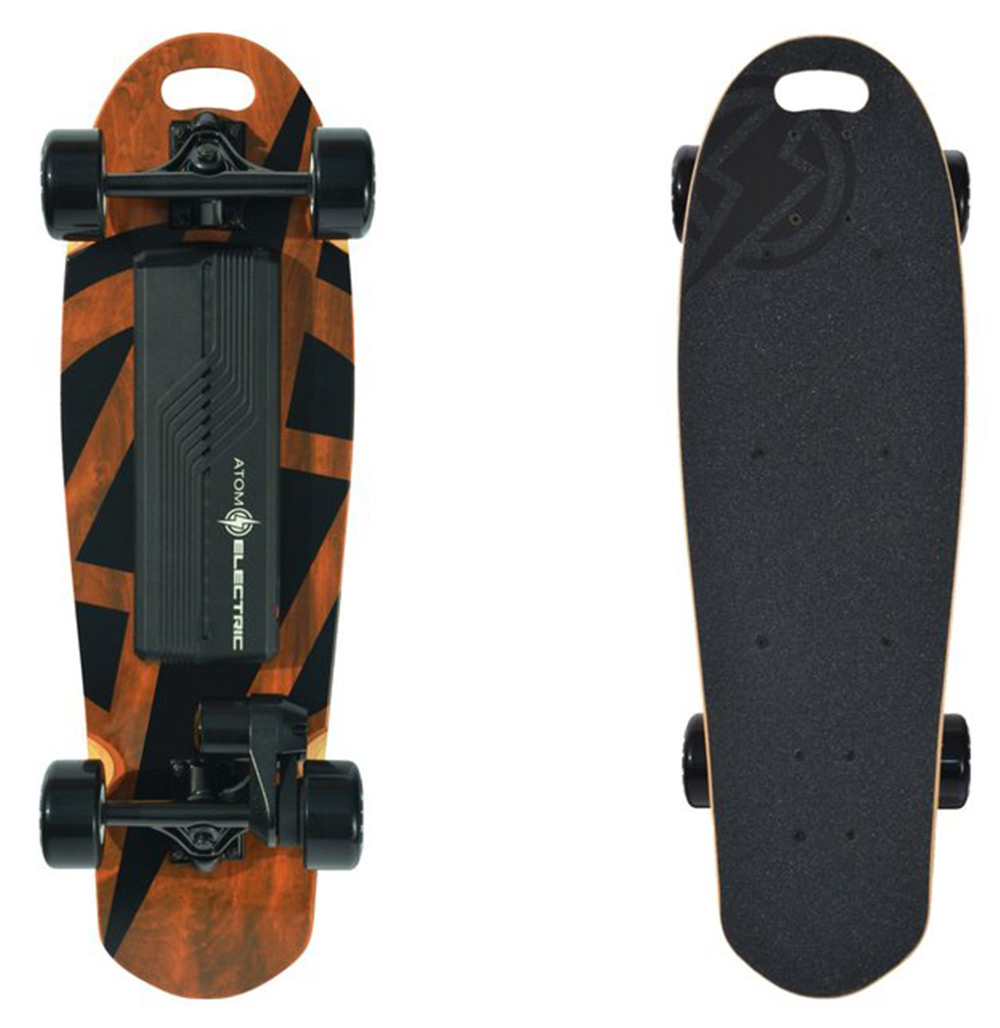

Atom Longboards Electric B10 Skateboard
The ideal e-board for those a little tight on space. With a built in handle this 1000w Atom B10 Electric Longboard is the most compact design from the brand.
The B10 from Atom Longboards combines fantastic quality in a single drive package with a compact and lightweight setup. This board has a low center of gravity providing with maximum stability as well as a kick tail and a very useful built in carry handle on the nose. This is one for the office commuters for sure.
The 1000w brushless motor on the B10 is fed by a high performance Samsung 25R lithium-ion batteries and the custom built speed controller. This board boasts enough torque to boost riders up to a maximum of a 10% gradient.
Whats in the box?
- One Atom B10 Electric Longboard Fully Built

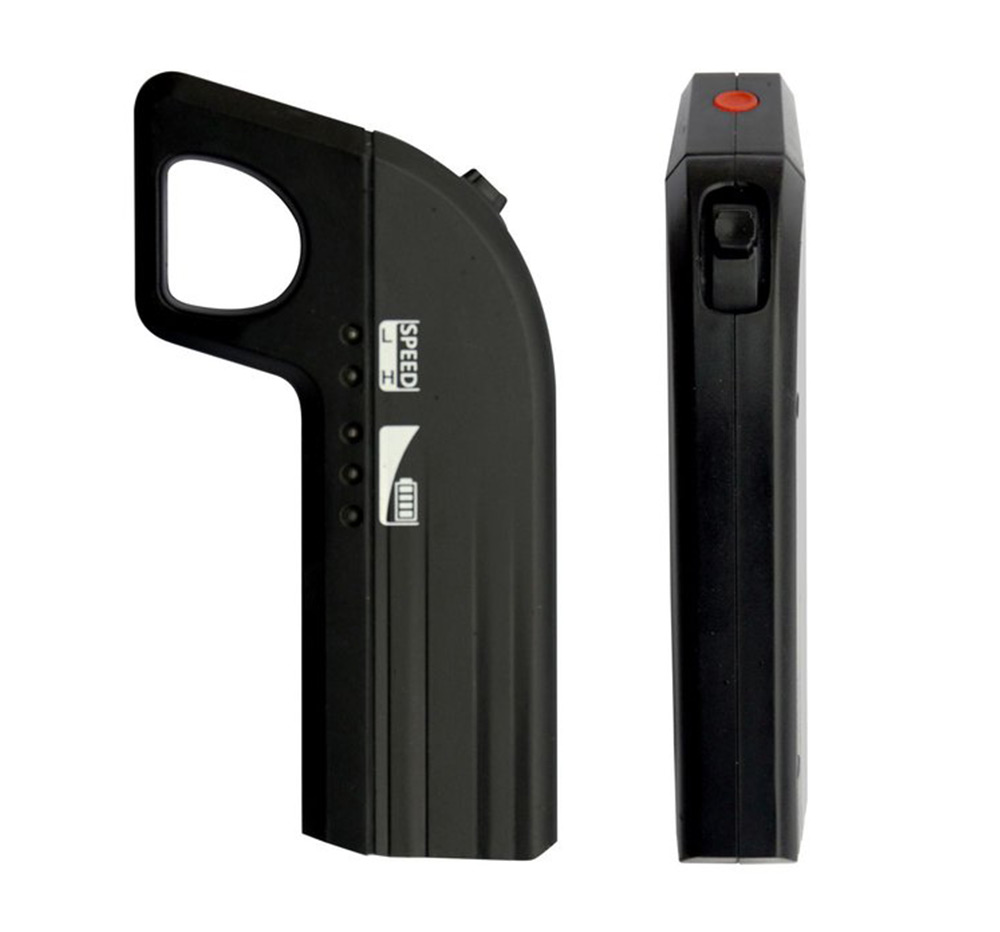

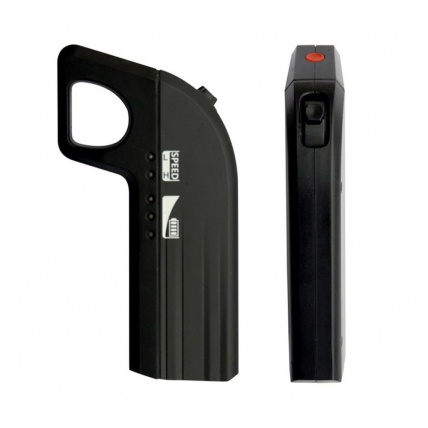

- One Remote Controller
- USB Remote Charger
- Atom Battery Charger
- Skate Tool
This board offers a multitude of features including regenerative breaking. This means when the breaks are applied (via the wireless remote control) the battery will begin to re-charge itself. You will find 2 modes for the B10. We have the beginner mode which is recommended for fist timers and then there is beast mode. This is where you will benefit from the full power and torque of this e-board.
The 11km (7 mile) range on this board is plenty for those commuting to work, school, the pub or just out for a cruise.
Technical Specifications of Atom B10 E-Board Electric Longboard
Range*: 7 miles / 11 km
Max Speed*: 16 mph / 25 kmh
Max Grade*: 12%
Max Rider Weight: 275 lb / 125 kg
Max Recommended Rider Weight: 200 lb / 91 kg
Board Weight: 11 lb / 5 kg
USB Accessory Charging Port?: No
Battery Charge Time: 2 hours
Deck Material: Maple
Deck Length: 29.5 in / 75 cm
Deck Width: 9.1 in / 23 cm
Motor Type: Brushless Direct Current (BLDC)
Motor Max Power Rating: 1000W
Motor Braking: Regenerative Braking
Motor Sensors: Sensorless
Belt Spec: 225-3M-13mm
Cell Type: Lithium-Ion (18650)
Cell Spec: Samsung 25R
Cell Voltage (Nominal): 3.6 V
Cell Current Capacity (Ah): 2.5 Ah
Cell Energy Capacity (Wh): 9.0 Wh
Battery Configuration: 10S X 1P (10 cells)
Battery Voltage (Nominal): 36V
Battery Current Capacity (Ah): 2.5Ah
Battery Energy Capacity (Wh): 90 Wh
Charger / Battery Voltage (Max): 42 V
Battery Charger Output (Amps): 1A
Wheel Material: Super High Rebound PU
Wheel Dimensions: 80mm X 45mm
Wheel Hardness: 78A
Remote Battery Type: Rechargeable Li-Ion
ESC Software: Sine Wave (FOC)
UN Dangerous Goods #: UN3171
UN Dangerous Goods Category: Battery Powered Vehicle
Dangerous Goods Class: Class 9 (Misc)
Certificates: UN 38.3, CE, RoHS
*Range, Speed and Grade based on a 70kg rider with very mild breeze and smooth ground at full charge.
