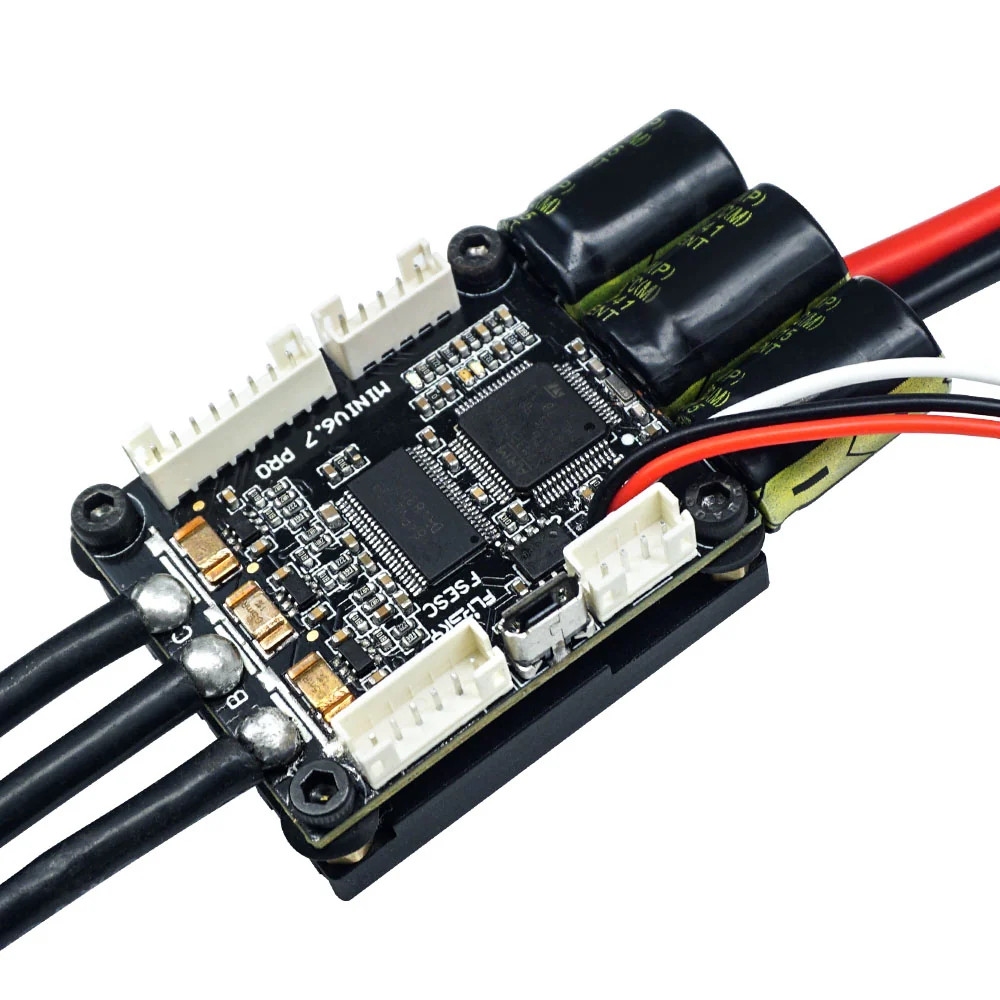

Flipsky Mini FSESC6.7 Pro 70A Speed Controller

The Flipsky FSESC6.7 Pro 70A Speed Motor Controller is a neat little controller in a small size for electric skateboards and other devices wanting to power a single motor. Safe for 4-12S systems and can sustain 70A continuous power output per motor it can still pack a punch. This controller can be connected to another controller by Canbus wire to power two motors together or we do a dual version of this controller with saves space and cost.

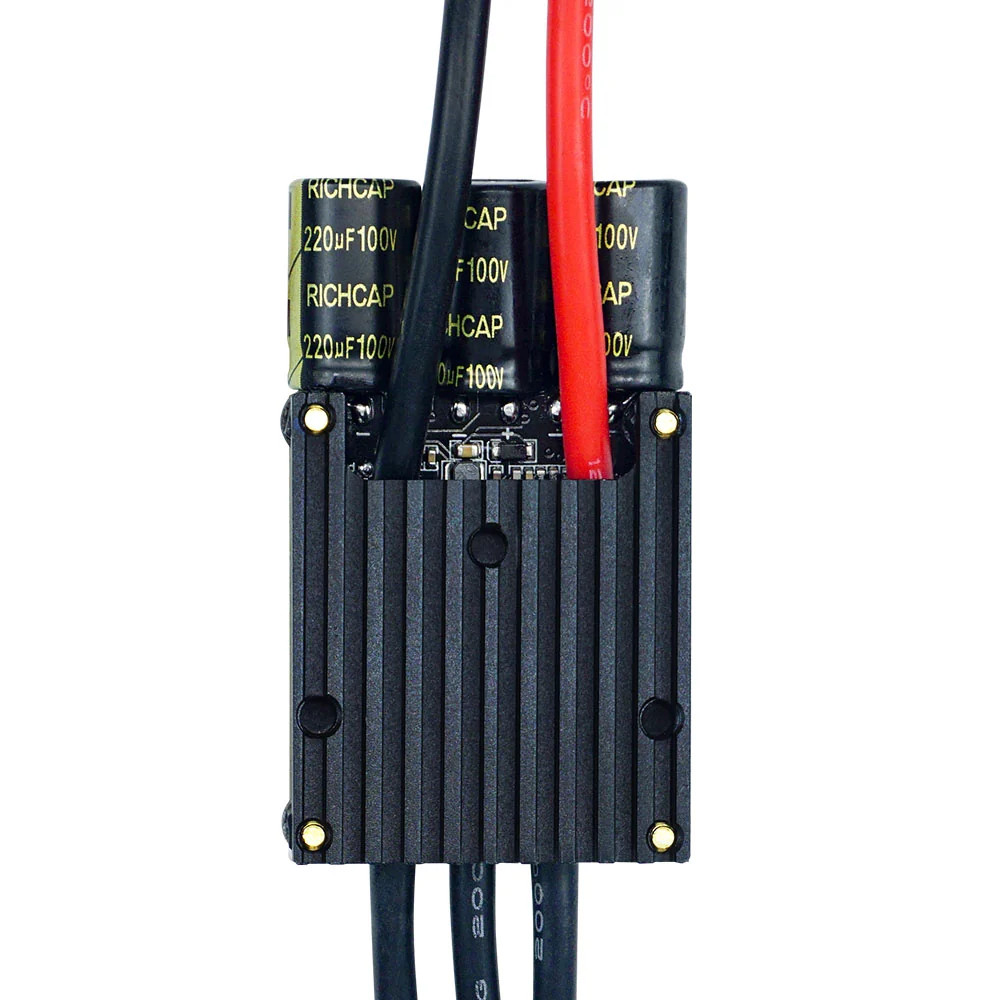

The heatsink is quite small for this controller so it really needs to be attached to a larger heatsink that is vented to air for heat dissipation. Also unlike some other ESC's this one is not enclosed in a case so needs the components protecting from damage and dirt/water. But all that being said then it's a great price and power combination for smaller boards or riders not wanting the maximum power or price! This would still be quite an upgrade compared to stock ESC's in factory built skateboards.

The Flipsky FSESC6.7 is a great budget ESC for many applications with a bit of DIY for enclosure and Heatsink it works great for super price!

If you are looking for a case and heatsink for this unit to bolt onto a mountainboard then we recommend our ATBShop Simple ESC case with heatsink. Use the Unity/Xenth with heatsink option and then attach this unit with Double sided heat tape (mention with order and we will include the tape for free).

Flipsky FSESC6.7 Pro 70A Speed Controller Specs:

• Firmware: Latest Version
• Continuous current: 70A; instantaneous current: 200A
• Voltage: 14V-60V(Cells: 4-13S; safe for 4S to 12S, voltage spikes may not exceed 60V! )

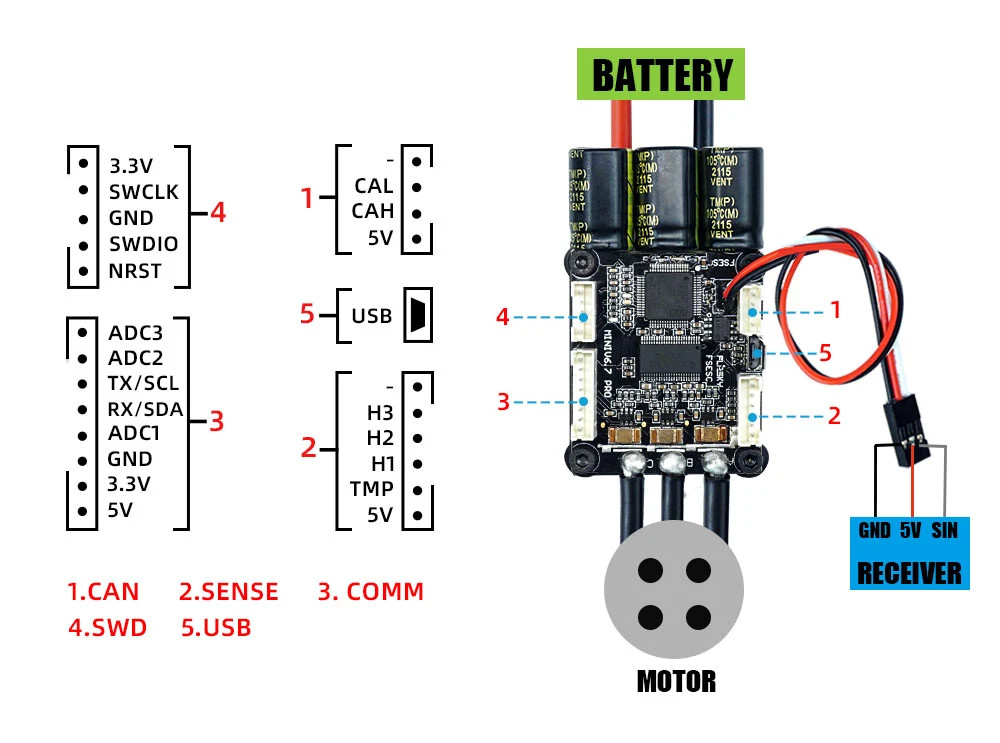

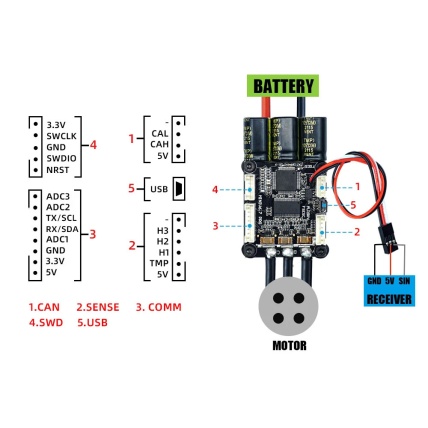

• Control Interface Ports:USB,CAN,UART, SPI, IIC
• Supported Sensors:ABI，HALL，AS5047，AS5048A
• Input Set Support:PPM, ADC, NRF, UART
• Modes:DC, BLDC, FOC (sinusoidal)
• Regenerative capacity: Yes
• BEC: 5V@1A
• ERPM: 150000
• Programmable: Yes
• Motor wire: 12AWG
• Power cable:12AWG

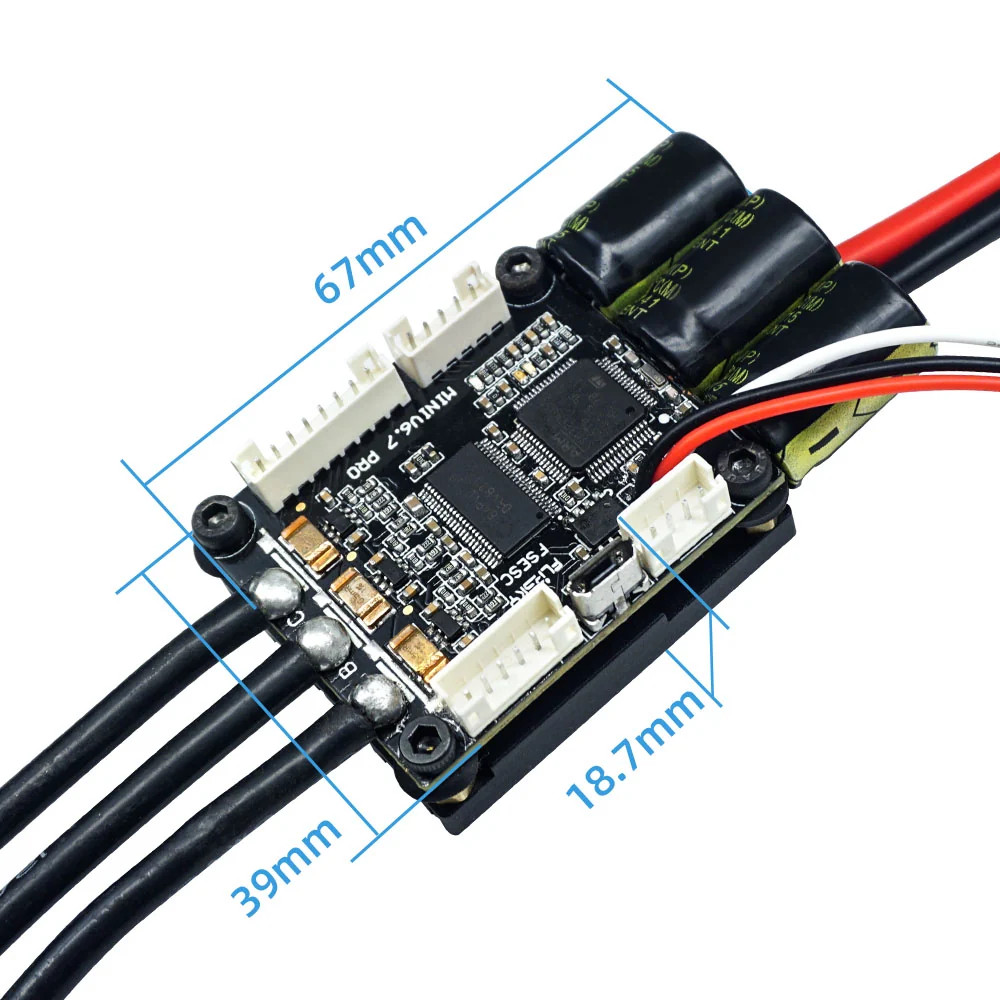

• Size:67x39x18.7mm(Including heatsink)
• Weight: 130g
