Flipsky Dual FSESC6.6 Plus Pro Switch

This FSESC is the smaller size version with pro switch for power control. It still has the same specs on paper as the "big size" twin unit but significantly smaller size and smaller heatsink then it does benefit from a well ventilated and extra heatsink adding if you are going to push a lot of amps through it for a time.  It does not come with plugs soldered on for connection so you need to add your own XT90 and bullet connectors or your choice of connections.  There is no screw holes for connection to case so it is a DIY fitment unit. The FSESC6.6 is fully compatible with the latest VESC Project firmware.  It is built to run 5v hall sensor motors the best and USB administering via PC based VESC Tool software or with the optional Bluetooth RF Dongle then can be setup using Android phone App.

If you are after an inexpensive ESC for a esk8 build then this Flipsky Dual FSESC6.6 is a damn good option. It may not last forever but will get you rolling and certainly packs a punch in terms of power able to be pushed out to big motors as long as cooled well.

2020 new version upgraded features:

• Pro switch version:
• Power on/off by pressing the button
• Added Can bus connector, be more convenient for 4WD set up
• Changed the USB port soldering process to SMT soldering instead of manual soldering
• Changed the big capacitors to SMT mounting capacitors ,and add more mosfets in the bottom side.

Flipsky Dual FSESC6.6 Plus Pro Switch Spec:

• Hardware: V 6.6
• Firmware: Latest VESC Tool firmware version 5.1+
• Voltage: 8V - 60V (Safe for 3S to 12S LiPo) for the dual ESC
• Voltage spikes may not exceed 60V
• Current: Continuous 100A single, total 200A ,  Instantaneous current 400A per single, total 800A for system instantaneous current. values depend on the mounting  and ambient temperature around the device!
• 5V 1.5A output for external electronics for single
• 3.3V 1A output for external electronics for single
• Modes: DC, BLDC, FOC (sinusoidal)
• Supported sensors: ABI, HALL, AS5047
• ERPM:150000

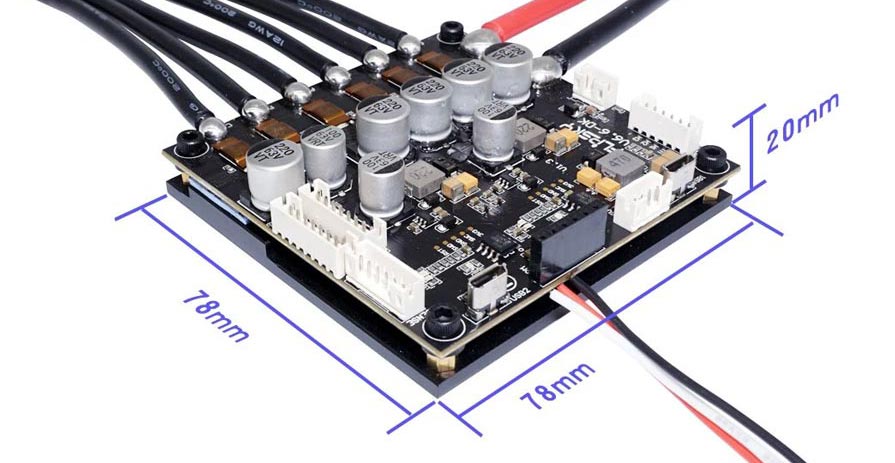

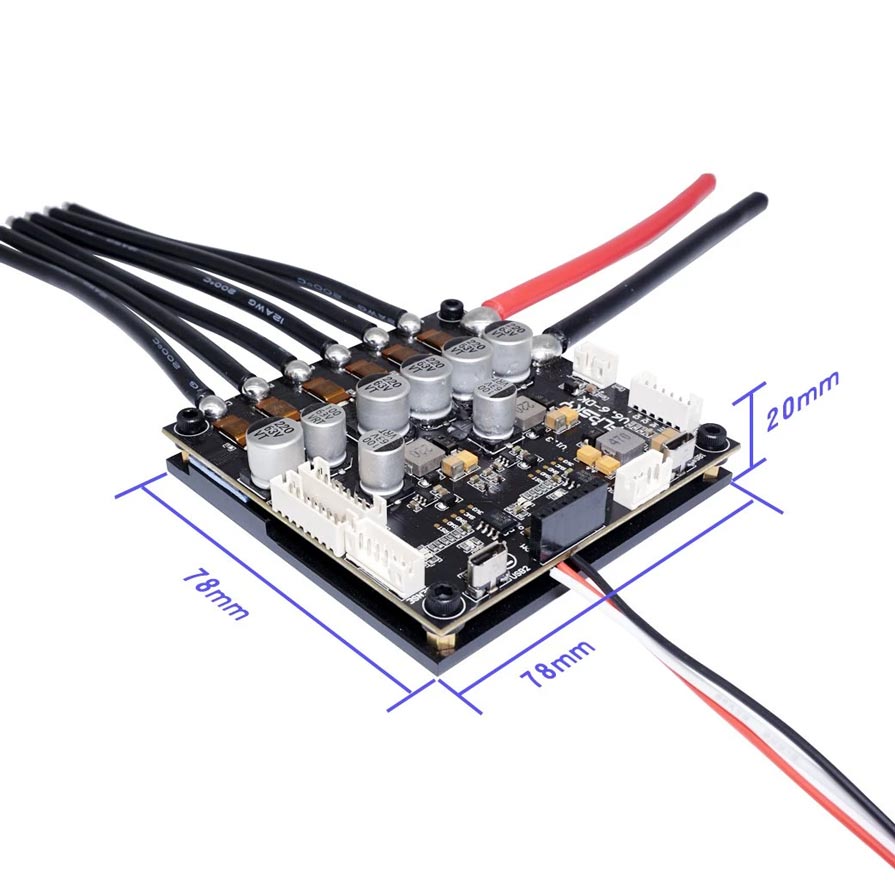

• Size: 78x78x20mm including heatsink
• Motor wire: 12AWG
• Power cable:8AWG
• Reminder: Detected battery voltage tolerance: +/-0.6V

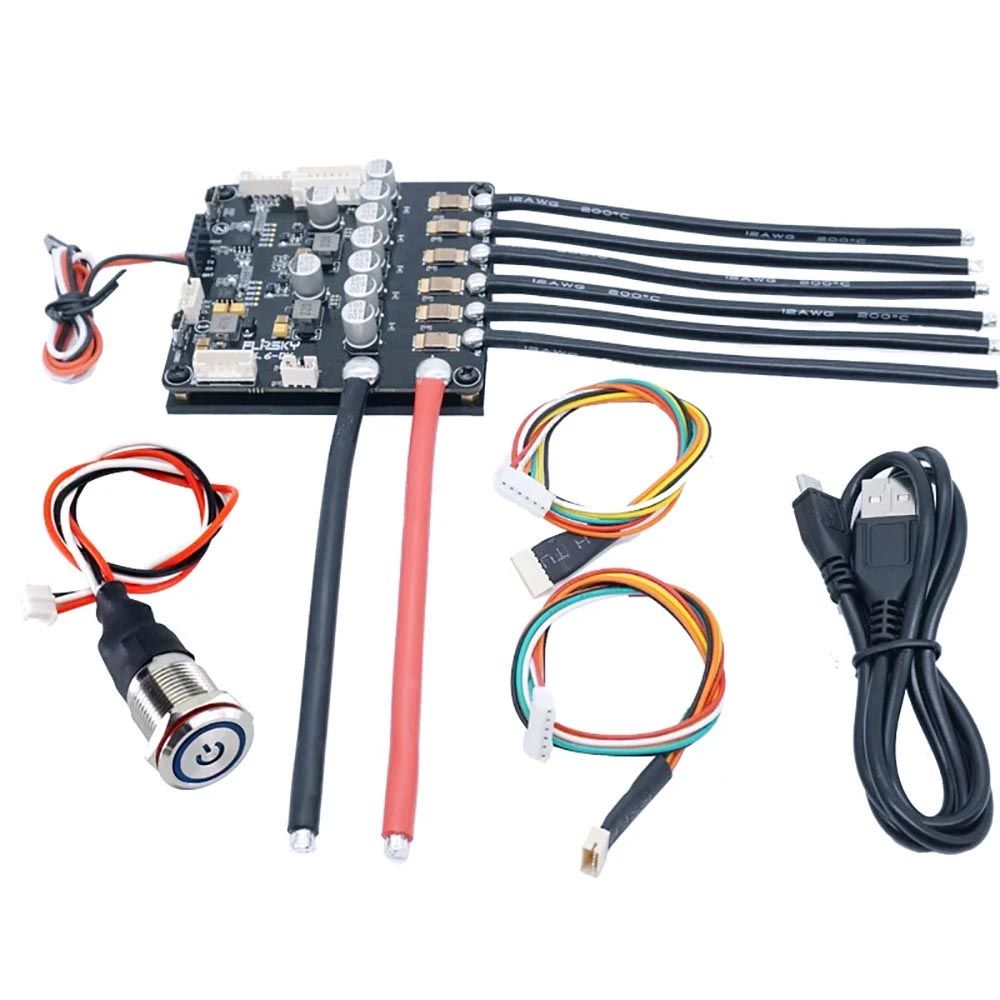

Flipsky Dual FSESC6.6 Plus Pro Switch package contains:

• 1*Dual FSESC6.6+Heatsink
• 2*VESC Sensor Wires
• 1*LED button
• 1*Micro USB
• 1*Manual

Flipsky Electronic Products Warranty:

All ESC and motors are 100% tested and shipped as a good product before shipment. Any uncertain connection or information for VESC/Motors settings, please contact us before your installation.

The warranty period for Flipsky consumable electronic products (eg. VESC/Motor/Battery/Remote/Antispark switch) is guaranteed for 2 months since shipment. Please contact ATBShop to process the after-sale service. You can return it to us for analysis as a manufacturing failure. If the replacement or repair is not possible for you, a discount can be provided for the new replacement.

The following conditions are not covered by the above warranty:

• Cannot provide purchase channel source proof
• Mechanical damage to electronic components or PCB
• PCBA board has repair soldering iron traces (excluding solder the cable bullet connectors)
• Wire damage or external impact damage
• (For non-waterproof products) there is water inflow
• Abnormal applications beyond the product specifications
